Most drawing objections are about margins, line weight or reference numerals. Shading is different: it is the one convention where the rule genuinely changes depending on what you are filing. In a utility case, patent drawing shading is encouraged and almost never fatal. In a design case, the same technique carries the claim — the shading is the disclosure of contour, and getting it wrong can leave you with a rejection under 35 U.S.C. 112 rather than a tidy formalities objection. Worse, the two governing rules each carve out an exception for solid black, and the exceptions are not the same.

What Patent Drawing Shading Must Achieve Under 37 CFR 1.84(m)

The operative sentence in 37 CFR 1.84, at paragraph (m), is permissive, and practitioners routinely misread it as an obligation: “The use of shading in views is encouraged if it aids in understanding the invention and if it does not reduce legibility.” Encouraged. Not required. An examiner cannot object to a utility figure merely because it is unshaded, provided the figure otherwise discloses the invention.

What the rule does police is how you shade once you choose to. Paragraph (m) states the purpose — shading indicates the surface or shape of spherical, cylindrical and conical elements — and then constrains the execution. Spaced lines are preferred over filled areas. Those lines must be thin, as few in number as practicable, and they must contrast with the rest of the drawing. The rule even fixes a notional light source: light should come from the upper left at 45 degrees.

That 45-degree convention is not decoration. It is what makes a set of figures internally consistent, so that a raised boss in Figure 3 reads the same way as the recess in Figure 7. Illustrators who shade each view to taste produce sets that look competent individually and incoherent together.

• Encouraged, not mandatory — an unshaded utility figure is compliant on its face
• Spaced lines preferred — thin, few, and contrasting with the linework
• Light from the upper left at 45° — applied consistently across every view
• Legibility is the ceiling — shading that muddies the figure defeats its own justification

The legibility limit interacts with 37 CFR 1.84(l), which requires that every line, number and letter be “durable, clean, black (except for color drawings), sufficiently dense and dark, and uniformly thick and well-defined.” Shading lines are lines. If your shading is so dense that the reference numerals sitting on top of it stop being legible after reproduction, you have created a paragraph (l) problem while trying to satisfy paragraph (m).

Hatching Is Mandatory Even Though Shading Is Not

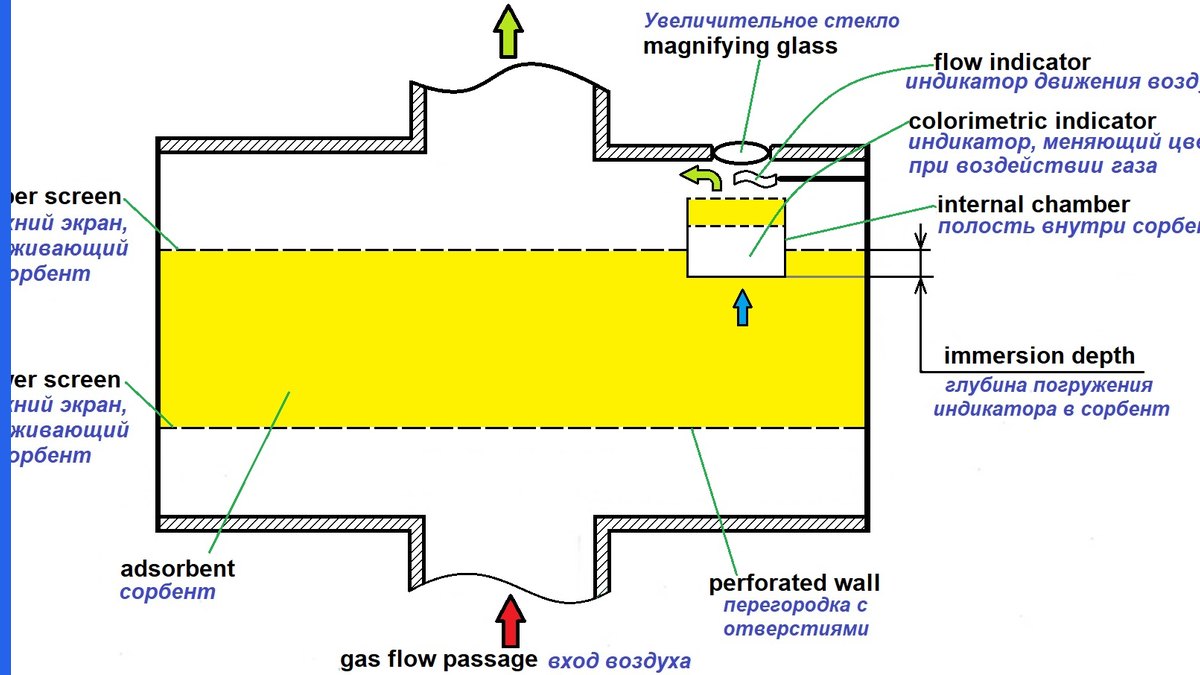

Here is the distinction that trips people up. Patent drawing shading under paragraph (m) is optional. Hatching under 37 CFR 1.84(h)(3) is not. The rule is unambiguous: “Hatching must be used to indicate section portions of an object, and must be made by regularly spaced oblique parallel lines.” If you file a sectional view, you must hatch it.

Paragraph (h)(3) carries several further requirements that get overlooked because they sit inside a long subsection. The plane on which a section is taken should be indicated on the view from which the section is cut, by a broken line. Hatching must not impede the clear reading of reference characters and lead lines — and where it would, the rule expressly permits you to break the hatching to make room for the character rather than crowding it.

Where two different elements meet in the same section, they must be hatched at different angles. This is how a reader distinguishes the housing from the insert without reading the description. For very large hatched areas, the rule allows hatching to be confined to an edging drawn around the entire outline, which keeps file sizes and printing costs sane without losing the signal. Different hatching conventions also carry conventional meanings for different materials, and using a recognised convention is free clarity.

1. Indicate the cutting plane on the originating view with a broken line
2. Hatch the section with regularly spaced oblique parallel lines
3. Change the hatching angle where a different element begins
4. Break the hatching around reference characters rather than overprinting them
5. For large areas, confine hatching to an edging around the outline

Because sectional views are where hatching becomes compulsory, the choice of which views to file has a direct compliance consequence. Our guide to patent drawing views covers how to select and label them; the point to carry across is that adding a section view adds a mandatory obligation, not just another sheet.

Design Cases Flip the Test: 37 CFR 1.152 and MPEP 1503.02

37 CFR 1.152 starts by importing the utility standard wholesale: the design must be represented by a drawing that complies with § 1.84 and must contain a sufficient number of views to constitute a complete disclosure of the appearance of the design. Then it adds its own instruction: “Appropriate and adequate surface shading should be used to show the character or contour of the surfaces represented.”

Read literally, that is still “should”, and MPEP 1503.02 confirms it — surface shading is not required under 37 CFR 1.152. But the MPEP immediately explains why that formal permissiveness is misleading in practice: it may be necessary in particular cases to shade the figures to show clearly the character and contour of all surfaces of any three-dimensional aspects of the design. Where the surfaces cannot be understood without it, the absence of shading is not a formalities defect. It makes the design nonenabling and indefinite under 35 U.S.C. 112.

That is the real asymmetry. In a utility case, weak shading costs you nothing legally. In a design case, weak shading can cost you the claim, because the drawing is the claim. There is no verbal description to fall back on that could rescue an ambiguous contour.

MPEP 1503.02 also makes one shading technique effectively compulsory in a specific situation: oblique line shading must be used to show transparent, translucent and highly polished or reflective surfaces, such as a mirror. If your article has a glossy bezel or a clear window and you have rendered it as blank white space, you have not disclosed that it is transparent. Contrast between materials, meanwhile, can be shown by using line shading in one area and stippling in another.

Shading interacts closely with the other great design-drawing convention, the broken line. What you disclaim with broken lines and what you shade together define the claim’s scope; we treat that boundary in detail in design patent broken lines. Note too that 1.152 forbids showing alternate positions of a design component by full and broken lines in the same view, and bars using broken lines for hidden planes and surfaces that cannot be seen through opaque materials.

The Solid Black Trap: Two Rules, Two Different Exceptions

Both rules ban solid black shading, and both carve out an exception. The exceptions are different, and this is the single most reliable way to tell whether a drafter has actually read the rules or is working from a template.

Under 37 CFR 1.84(m), the utility rule: “Solid black shading areas are not permitted, except when used to represent bar graphs or color.” Under 37 CFR 1.152, the design rule: “Solid black surface shading is not permitted except when used to represent the color black as well as color contrast.”

The overlap is colour. The divergence is bar graphs, which the utility rule contemplates and the design rule has no reason to. More importantly, the design formulation is about representing the colour black and colour contrast on the article itself — a black keycap against a grey body — whereas the utility formulation is about representing colour generally, including in a chart. Using solid black to render a shadow, or to make a part “pop” visually, is outside both exceptions.

• Utility, 1.84(m): solid black permitted only for bar graphs or colour
• Design, 1.152: solid black permitted only for the colour black and colour contrast
• Neither: solid black as a shadow, a highlight, or a stylistic emphasis
• Both: spaced or oblique line shading is the default vehicle

Two related constraints belong here. 37 CFR 1.84(b) provides that photographs, including photocopies of photographs, are not ordinarily permitted in utility and design patent applications — so you cannot sidestep a shading problem by substituting a photograph. And 1.152 adds that photographs and ink drawings may not be combined as formal drawings in one application, and that any photograph filed in lieu of an ink drawing in a design case must not disclose environmental structure but must be limited to the design claimed for the article.

European Practice After Rule 46 EPC Was Deleted

If you look up the European rule on the form of drawings, a great deal of material still online will hand you Rule 46 EPC. That rule has been deleted. At its 172nd session on 13 October 2022 the EPO’s Administrative Council adopted a package of amendments supporting the Office’s digitalisation programme; Rule 46 EPC, headed Form of the drawings, was deleted outright, as were paragraphs (3) to (12) of Rule 49 EPC. Both changes took effect on 1 February 2023.

The substance did not disappear. The detailed presentation requirements were transferred into a decision of the President of the EPO, and the first such decision was intended to restate the deleted material rather than change it. What remains in the Implementing Regulations is Rule 49(1) and (2) EPC, the general obligation that the documents making up the application be presented so as to allow electronic and direct reproduction. The granular requirements now sit below that line, which is why the Guidelines have become the text practitioners actually work from — see our walkthrough of the EPO Guidelines A-IX drawings chapter.

For shading specifically, the practical consequence is that citing “Rule 46 EPC” in a response or an opinion in 2026 signals that the source has not been checked since 2023. Cite the Guidelines for practice and the President’s decision for entitlement. The European approach to cross-sections remains conventional hatching, and European figures are executed in durable, black, sufficiently dense lines, so a set drafted to the stricter US standard will generally travel — but the citation has to be current.

One divergence is worth flagging: there is no European equivalent of 37 CFR 1.152, because registered designs in Europe are not handled through the patent route at all. Design shading questions in Europe are governed by the design registration system, not the EPC.

How Patent Drawing Shading Actually Gets You Rejected

Patent drawing shading failures arrive in two very different envelopes, and confusing them wastes response time.

The first is a formalities objection to the drawings. This is the ordinary case: hatching missing from a section view, hatching at the same angle across two different elements, shading dense enough to obscure reference numerals, or solid black used outside the exceptions. These are correctable by filing replacement sheets, and they do not touch the substance of what you disclosed. Our survey of patent drawing mistakes that trigger office actions maps the common ones.

The second is a rejection under 35 U.S.C. 112, and it is almost exclusively a design-case phenomenon. If the surfaces of a three-dimensional design cannot be understood without shading and you did not supply it, the examiner is not complaining about presentation — the position is that the design as disclosed is indefinite and nonenabling. The trap is that you generally cannot cure it by adding shading later, because shading that resolves a previously ambiguous contour is telling the reader something the original drawings did not, which raises new matter.

That asymmetry is the reason design shading should be settled before filing rather than treated as something to negotiate during prosecution. A formalities objection is an inconvenience. A 112 rejection on contour, with no clean amendment path, can end the application.

The related discipline is consistency across the set. Hatching angles, shading direction and line weights that vary between sheets read as different articles, and the wider requirements framework is set out in our reference on USPTO patent drawing requirements under 37 CFR 1.84.

A Seven-Point Shading Check Before You File

Run this patent drawing shading check over every set. It takes a few minutes and it catches the overwhelming majority of shading defects that would otherwise come back as correspondence.

1. Every sectional view is hatched with regularly spaced oblique parallel lines — this is mandatory, not encouraged
2. Adjacent elements use different hatching angles, and the cutting plane is marked on the originating view
3. Hatching breaks around reference characters rather than running underneath them
4. Solid black appears only within the applicable exception — bar graphs or colour in utility, the colour black or colour contrast in design
5. Light reads from the upper left at 45 degrees consistently across every view in the set
6. Transparent, translucent, polished and reflective surfaces carry oblique line shading in design cases
7. Reference numerals remain legible after the set is reduced and reproduced in black and white

One further check applies only to design filings, and it is the one worth doing slowly: read each view and ask whether a stranger could describe the contour of every surface from the shading alone. If the answer is no anywhere, fix it now. After filing, the amendment that would fix it is likely to be new matter.
